Single door magnetic lock(Waterproof)
Home>Products Center>Magnetic lock series>Single door magnetic lock(Waterproof)
VI-500ASW
500KG（1200Lbs）Sigle Door Magnetic Lock (waterproof)
The VIANS Electromagnetic lock is using the leading production equipment and packaging technology of the international. Produced the electromagnetic lock is not only higher than similar products by more than 20% of the lock holding force, but also the antioxidant capacity of the surface of magnetic lock is reached the international advanced level. Which are widely used in airports, subways, banks, prisons, intelligent buildings.
-
-

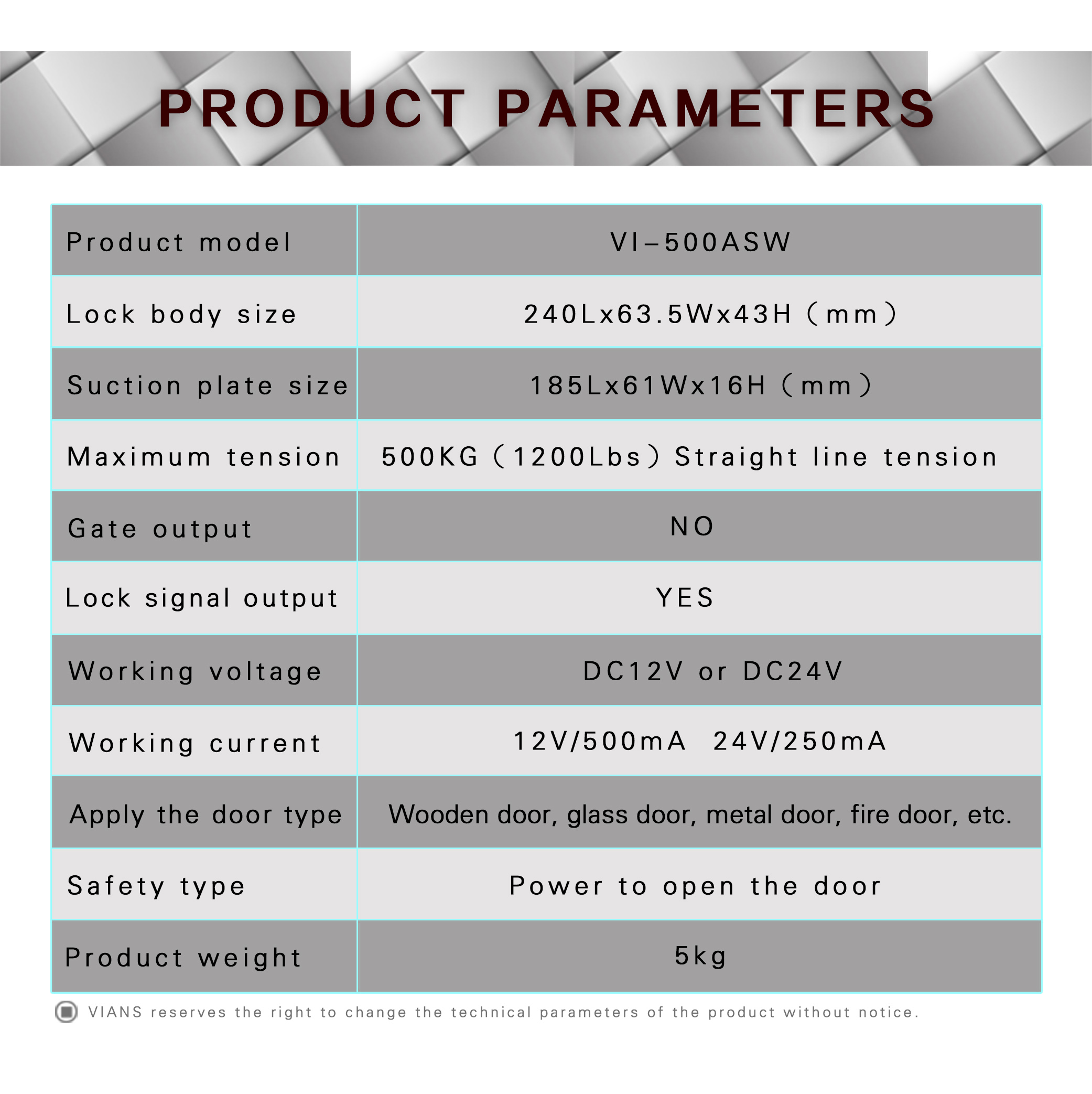

Product Parameter
Parameter Description
Lock Size
240L*63.5W*43H(mm)
Armature Plate Dimension
185L*61W*16H(mm)
Holding Force
500kg(1200Lbs)
Signal output
NO
Input Voltage
DC12V or DC24V
Working Current
12V/460mA 24V/220mA
Door Type Applicable
Wooden door , Glass door ,Metal door , Fireproof door
Time Delay
NO
Security Type
Power off to open
Weight
5kg
